2901 |
* 230187 |
1,0 Kolben komplett S6E |
|
2901 |
* 230190 |
1,0 S6E COMPLETE PISTON + 1 |
|
2901 |
*
260131 |
1,0
S6E GASKET SET + 0,5 |
|
2901 |
*
260132 |
1,0
S6/E GASKET SET + 1 |
|

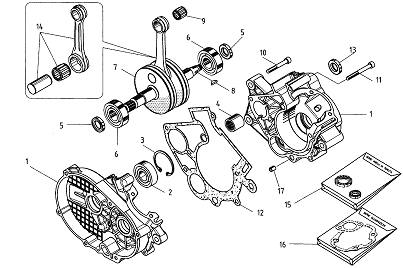

2901 |
A.01
120690 |
1,0
S6 V/EC+SPORT COMPLETE CASING |
|
2901 |
A.02
126067 |
1,0
17X35X10 BEARING |
|
2901 |
A.03
105070 |
1,0
D.36 S6 CIRCLIP |
|
2901 |
A.04
108512 |
1,0
ROLLER SHEATH |
|
2901 |
A.05
106033 |
2,0
16,5X27X6 SEAL |
|
2901 |
A.06
126021 |
2,0
17X40X12 6203/C3 BEARING |
|
2901 |
A.07
100187 |
1,0
S6 CRANKSHAFT |
|
2901 |
A.08
127025 |
1,0
FLYWHEEL KEY |
|
2901 |
A.09
161024 |
1,0
KBK 12X15X15 CAGE |
|
2901 |
A.10
291993 |
1,0
TCE 6X60 SCREW |
|
2901 |
A.11
291991 |
7,0
TCE 6X50 SCREW |
|
2901 |
A.12
164297 |
1,0
S6 GASKET |
|
2901 |
A.13
106034 |
1,0
15,9X27X5 SEAL |
|
2901 |
A.14
110040 |
1,0
S6 COMPLETE CONNECTING ROD |
|
2901 |
A.15
260536 |
1,0
S6 V/EC.+COM. SET OF SEAL. |
|
2901 |
A.16
260655 |
1,0
S6 E SET OF GASKET |
|
2901 |
A.17
268127 |
2,0
PIN SUPPORT |
|

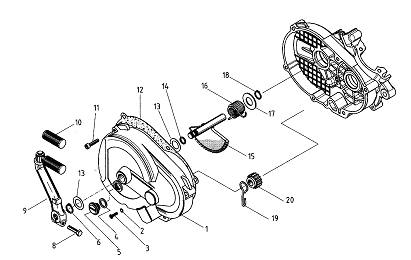

2901 |
B.01
124257 |
1,0
S6 CLUTCH COVER |
|
2901 |
B.02
164069 |
1,0
ALUMINIUM GASKET |
|
2901 |
B.03
296001 |
1,0
TCB 6X8 SCREW |
|
2901 |
B.04
164026 |
1,0
OIL FEED GASKET |
|
2901 |
B.05
273007 |
1,0
OIL FILLER CAP |
|
2901 |
B.06 105029 |
1,0 14X1,2 DIN 471 CIRCLIP |
|
2901 |
B.08 294115 |
1,0 TE 7X25 SCREW |
|
2901 |
B.09
190029 |
1,0
RVK FM STARTING LEVER |
|
2901 |
B.10
163028 |
1,0
STARTING LEVER RUBBER WASHER |
|
2901 |
B.11
291987 |
6,0
TCE 6X30 SCREW |
|
2901 |
B.12
164296 |
1,0
S6 CLUTCH COVER GASKET |
|
2901 |
B.13
5400508 |
2,0
WASHER |
|
2901 |
B.14
107024 |
1,0
SEAL FOR PIN |
|
2901 |
B.15
100188 |
1,0
S6 KICK STARTER SHAFT |
|
2901 |
B.16
201181 |
1,0
S6 STARTING SPRING |
|
2901 |
B.17
254010 |
1,0
WASHER |
|
2901 |
B.18
105001 |
1,0 D15 E CIRCLIP |
|
2901 |
B.19
201197 |
1,0
S6 1,8 GEAR SPRING |
|
2901 |
B.20
181300 |
1,0
S6 DOG GEAR |
|

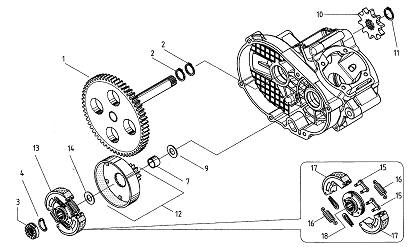

2901 |
C.01
120689 |
1,0
S6 BRAKE BLOCK |
|
2901 |
C.02
105077 |
2,0
D.17 CIRCLIP FOR SHAFT |
|
2901 |
C.03
131035 |
1,0
NUT C/STARTING S6 |
|
2901 |
C.04 201195 |
1,0 FEDER ATAZZA D.10.5X20X1.5 |
|
2901 |
C.07
115097 |
1,0
S6 BUSHING-GEAR.TRASMISSION |
|
2901 |
C.09
5400506 |
1,0
WASHER |
|
2901 |
C.10
232608 |
1,0
S6 Z10 SPROCKET |
|
2901 |
C.11 105035 |
1,0 DIN 471 CIRCLIP |
|
2901 |
C.12
180031 |
1,0
S6 GEAR WITH BUSH+CLUTCH |
|
2901 |
C.13
200090 |
1,0
S6 COMPLETE HUB FOR BLOCK |
|
2901 |
C.14
136130 |
1,0
S6 SPACER CLUTCH BELL |
|
2901 |
C.15
120558 |
2,0
JOINT FOR BLOCKS |
|
2901 |
C.16
201130 |
2,0
M1/S SPRING BLOCKS |
|
2901 |
C.17
127352 |
2,0
S6/E+T CLUTCH BLOCK |
|
2901 |
C.18
206087 |
1,0
S6 SHOE HOLDER HUB |
|
2901 |
C.19
107065 |
1,0
S6 OR SEAL |
|

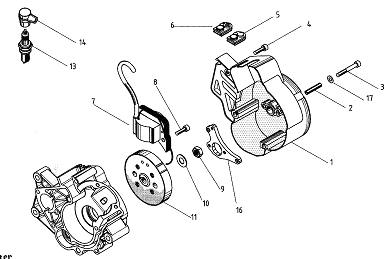

2901 |
D.01
124260 |
1,0
S6 EC+MIX+SP+COM. CLUTCH |
|
2901 |
D.02
167056 |
2,0
MOT.S6 DOWEL D.7 |
|
2901 |
D.03
291966 |
3,0
TCE 5X50 ZN. SCREW |
|
2901 |
D.04
291959 |
1,0
TCE 5X20 SCREW |
|
2901 |
D.05
163075 |
2,0
S6 FAIRLEAD RUBBER WASHER |
|
2901 |
D.06
163078 |
1,0
S6 FAIRLEAD RUBBER WASHER |
|
2901 |
D.07
140003 |
1,0
COMPLETE COIL+PLUG |
|
2901 |
D.08
291957 |
2,0
TCE5X16 SCREW |
|
2901 |
D.09
131032 |
1,0
FLANGED NUT M8 FOR HEAD |
|
2901 |
D.10
254023 |
1,0
D 8,2X14X1,8 WASHER |
|
2901 |
D.11
290161 |
1,0
S6 V/EC+MIXER FLYWEEL |
|
2901 |
D.13
127346 |
1,0
CHAMPION L78C SPARK PLUG |
|
2901 |
D.14
237152 |
1,0
S6 D.5 SPARE PLUG CONNECTION |
|
2901 |
D.16
268257 |
1,0
FLYWHEEL COVER SPACER |
|
2901 |
D.17
254012 |
4,0
D 5 WASHER |
|

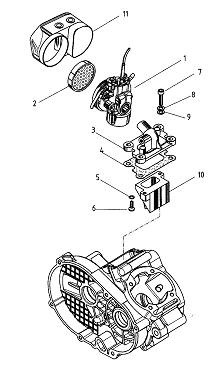

2901 |
G.01 120153 |
1,0 SHA 14/12 R.2087 CARBURETTOR |
|
2901 |
G.03
251163 |
1,0
S6 CARBURETTOR CONNECTION |
|
2901 |
G.04
164304 |
1,0
S6 CONNECTION GASKET |
|
2901 |
G.05
254086 |
2,0
4,3X9 UNI 6592-69 WASHER |
|
2901 |
G.06
296137 |
2,0
T.B.4.2X22 UNI 6954 SELF- TAPPING SCREW |
|
2901 |
G.07
291984 |
4,0
TCE 6X20 SCREW |
|
2901 |
G.08
254238 |
4,0
SPRING WASHER |
|
2901 |
G.09
254001 |
4,0
D 6 WASHER |
|
2901 |
G.10
290527 |
1,0
SCOOT.COMPL.REED VALVE |
|
2901 |
G.11
150043 |
1,0
CARBURETTOR FILTER |
|
2901 |

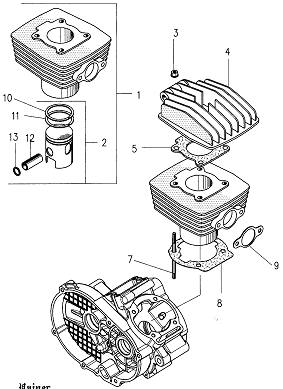

H.01
773964 |
1,0
S6 CYLINDER+PISTON COMPL |
|
2901 |
H.02 230186 |
1,0 COMPLETE PISTON S6E |
|
2901 |
H.03
131030 |
4,0
FLANGED NUT M6 125/4-STROKE |
|
2901 |
H.04
275034 |
1,0
S5 N HEAD |
|
2901 |
H.05
164121 |
1,0
T4 HEAD GASKET |
|
2901 |
H.07
235055 |
4,0
S6 CYLINDER-HEAD STUD BOLT |
|
2901 |
H.08
164295 |
1,0
S6 0,5 CYLINDER-BASE GASKET |
|
2901 |
H.09
164308 |
1,0
S6 V/ECON. DRAIN SEAL |
|
2901 |
H.10
261003 |
1,0
D 39 L-SHAPED RING |
|
2901 |
H.11
261044 |
1,0
5ST/SP D 39X1,5 PISTON RING |
|
2901 |
H.12
268107 |
1,0
D.12 PIN |
|
2901 |
H.13
104001 |
2,0
PIN HOLDING RING |
|
|
